Wireless gas detector

Ref : ALARMEGAZ   [#20]
€17.00
  • Wireless gas detector for Euro Security Protect alarm
  • Works standalone or coupled with the control panel
Quantity
In stock. Ships within 1-2 days.

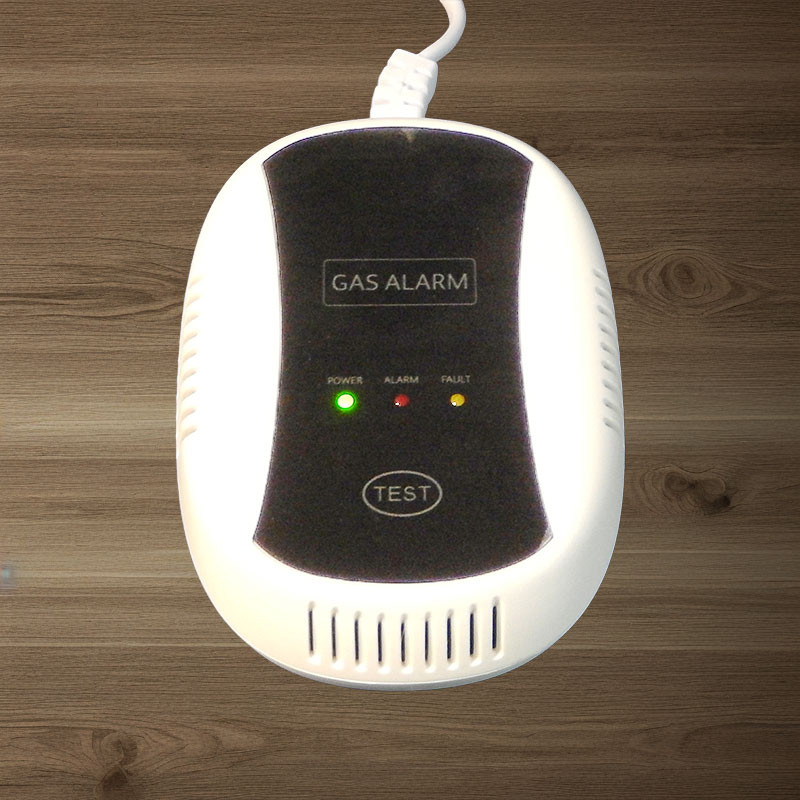

Gas detector that can operate in standalone mode, or by pairing it with the Euro Security Protect control panel.

In case of gas detection, the 70 dB sound alarm will trigger after approximately 30 seconds.

The detector should be placed approximately 2 meters from the gas source, such as a stove or water heater.
Do not install in a humid room like a bathroom.
Do NOT paint or use alcohol for cleaning.

Pairing the gas detector with the control panel

  • On the control panel, click on Menu, then on accessories
  • Plug the siren into a 220V power outlet and wait for the green LED to light up. This may take several seconds.
  • On the control panel, click on "Detectors".
  • Press the + icon to enter pairing mode.
  • Press the "TEST" button on the detector. Pairing is complete. Press TEST again to stop the sound signal.

Technical specifications of the wireless gas detector

Power supply 100 to 240V AC
Gas detection 3 to 15% LEL
Communication Wireless, 433.92 MHz
Housing dimensions 120 x 90 x 40 mm
Standby current 100 mA
Alarm current 150 mA
Lifespan 3 years
Response time 30 seconds
Sound alarm 70 dB
Wired alarm output NO/NC Relay
Temperature range -10 to 55° C
Humidity 10 to 95% RH
Weight 140 grams
Certifications CE
