125 dB Waterproof Siren - 7 customizable mp3 sounds

An innovative, powerful, and multi-broadcast siren

Effectively protect your home, business, or any other location with this innovative customizable alarm siren.

With a sound power of up to 125dB, this siren will alert the neighborhood up to 100 meters.
Indoors, you can use one or more sirens simultaneously to create an unbearable sound barrier, instantly scaring off burglars.
For optimal results, each siren should emit different and shrill frequencies to disorient intruders.

The siren is equipped with 7 distinct MP3 sounds, allowing you to choose the most suitable signal for each situation (fire, intrusion, etc.).
In addition to the 7 pre-installed sounds, you can download or even create your own according to your specific needs: sirens, environmental noises, spoken messages...

It easily allows you to simulate presence, such as dog barking, conversations, or various noises. An effective way to deter burglaries.

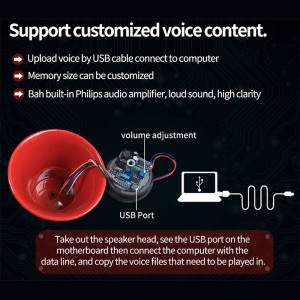

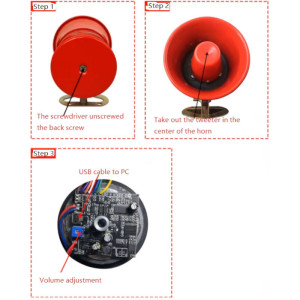

The siren is equipped with a USB port that allows you to download MP3 sounds from your computer.
When connected, it will be recognized as an external drive. You can then transfer files with a simple copy/paste.

Main features of the MP3 siren

• Intense sound power: up to 125dB for immediate and deterrent alert.
• 7 MP3 sounds to choose from: Customize your alarm with various pre-recorded sound signals.

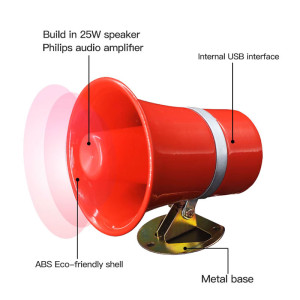

• Robust 25W speaker: Ensures clear and powerful sound diffusion.

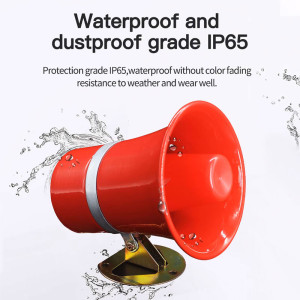

• IP65 waterproof material: Designed to withstand weather and harsh conditions. Usable both indoors and outdoors.

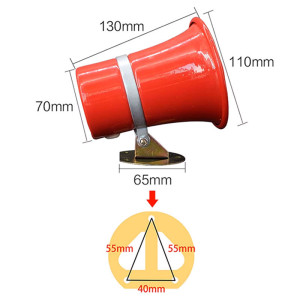

• Easy to install: Quickly attaches to any surface type.
• Versatile: Ideal for residential, commercial, and industrial alarm systems.

The advantages of a customizable and powerful MP3 siren

• Enhanced security: Deters intruders and alerts in case of fire or other dangers.
• Customization: Choose one of the 7 alarm sounds most appropriate for each situation.
• Sound barrier: Pair 2 or more sirens for formidable efficiency.

Examples of use for the 125dB siren

• Alarm systems for houses, apartments, offices, and shops.
• Emergency warning for factories, warehouses, and construction sites.
• Rescue siren for emergency vehicles and boats.
• Sound systems for outdoor events thanks to customizable MP3s.

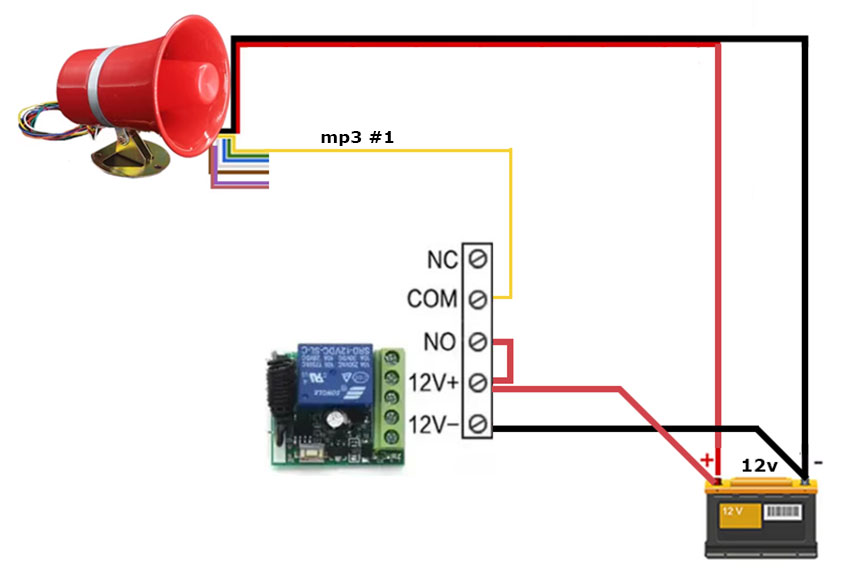

Siren installation and wiring

The siren must be powered by a 9-32V DC electrical source or a battery for autonomous use.
Recommended power supply: 12V 2A (24W).
It is triggered by a high signal (rising edge from 9 to 32V) sent on one of the 7 wires corresponding to the MP3 sound number to be played.
A relay is generally used for triggering.
The relay offered in the accessories allows coupling the siren with a 433 MHz alarm panel or manually triggering it with a remote control.

Configure the relay in real-time mode (jog mode): In case of an alarm, the panel triggers the relay momentarily, allowing the siren to be activated and play the full MP3.
Refer to the description of relay usage modes.

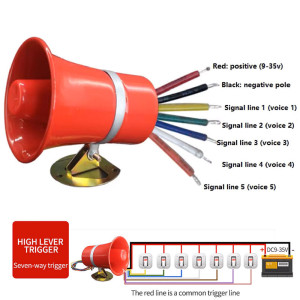

The selection of the MP3 file to play is done with the corresponding wire:

• Yellow wire: MP3 No.1
• Green wire: MP3 No.2
• Blue wire: MP3 No.3
• Gray wire: MP3 No.4
• Brown wire: MP3 No.5
• Purple wire: MP3 No.6
• Orange wire: MP3 No.7

If you use multiple sirens to create a sound barrier, you will need one relay per siren.
Each relay can be paired with the same 433 MHz signal or remote control.

Precautions for use

The siren can emit a loud sound depending on the volume set as well as that of the MP3.
During installation or operation, do not stay in close proximity to the siren or use hearing protection such as earplugs or earmuffs.
